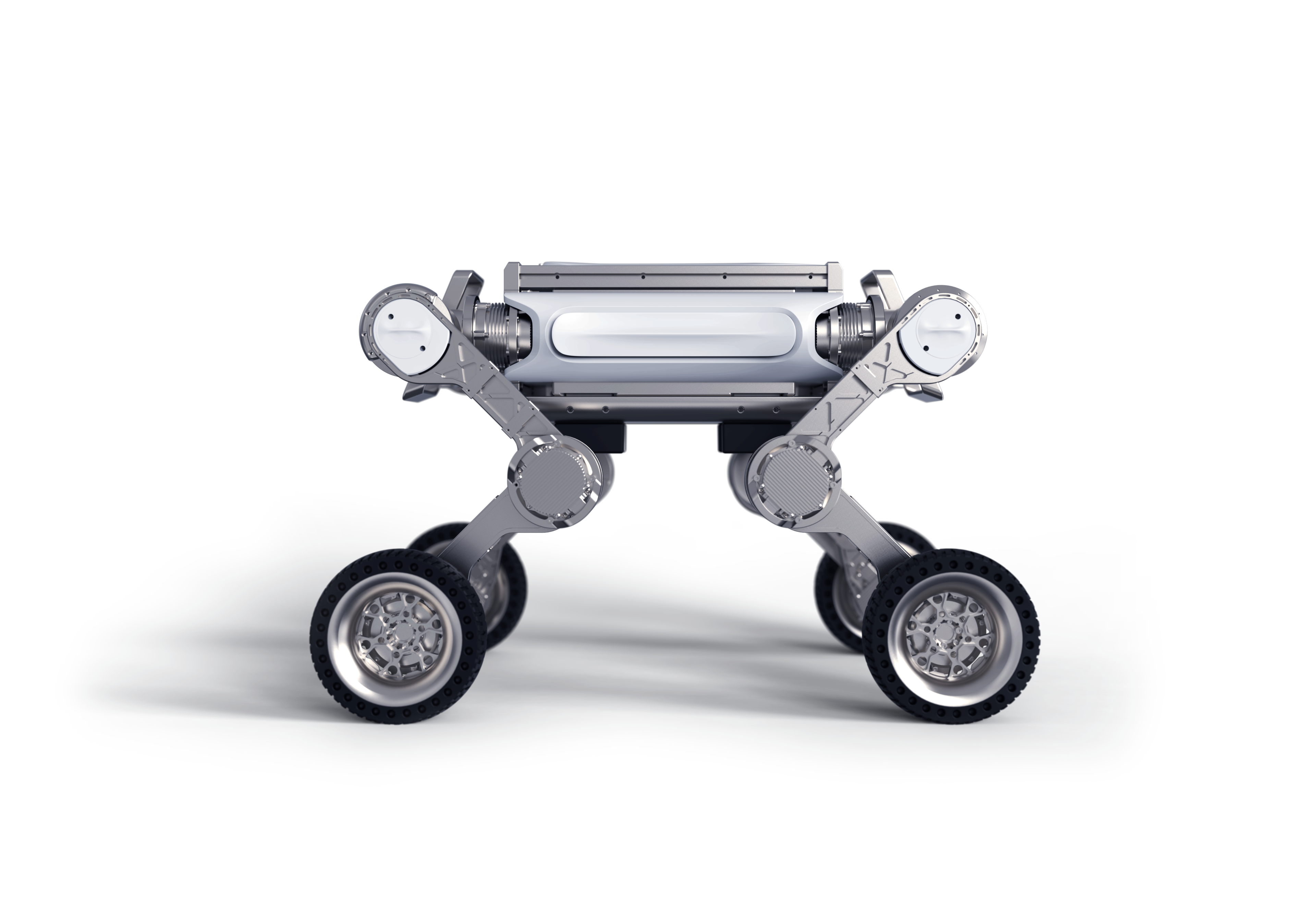

New-Generation Modular Architecture
Built on industrial-grade modules — the coupled power module. Drive and structure are integrated and coupled, cutting part count by 35% and improving heat dissipation efficiency by 300% year-on-year, so continuous operation is under no pressure.
Quick Swap, No Downtime
Modules are independently decoupled, so a failure in one does not affect the others. Swap the faulty module and the robot is back in service immediately — no months of downtime waiting for repairs.
Extreme Performance
At the Robot Warrior Challenge it was the only robot to complete every scenario, with outstanding obstacle negotiation, climbing and complex-terrain capability.
More Customization Options
Bare-machine exterior specifications and personalized appearance customization are available — configure it exactly the way you want.
Flexible Delivery Options
Shipped either as a complete robot or as a full kit of parts.
Specifications
Product Model
Product Model
BPW
BPW-Auto
Mechanical Parameters
Weight (battery included)
Peak joint torque
Joints / Degrees of freedom
approximately 30kg
approximately 100N·m
16
approximately 30kg
approximately 100N·m
16
Performance Parameters
Continuous walking payload
Max. speed
Climbing ability
Climbing height
Endurance (no load)
Endurance (with payload)
Protection rating
Operating temperature
20kg
5m/s
45°
50cm
6h / approximately 50km
2.5h / approximately 20km
IP66
-20℃ ~ 55℃
20kg
5m/s
45°
50cm
6h / approximately 50km
2.5h / approximately 20km
IP66
-20℃ ~ 55℃
Electrical Characteristics
External interfaces
Perception modules
Battery capacity
Gigabit Ethernet, 12V, 24V, 5V
/
1100-1200wh
Gigabit Ethernet, 12V, 24V, 5V
LiDAR + HD camera + self-charging (charging dock sold separately) + autonomous navigation + industrial remote controller
1100-1200wh
